Thunderbots Contributions

Overview

1. Used MATLAB and control theory to model a stable closed-loop controller in Field Oriented Control for our motors.

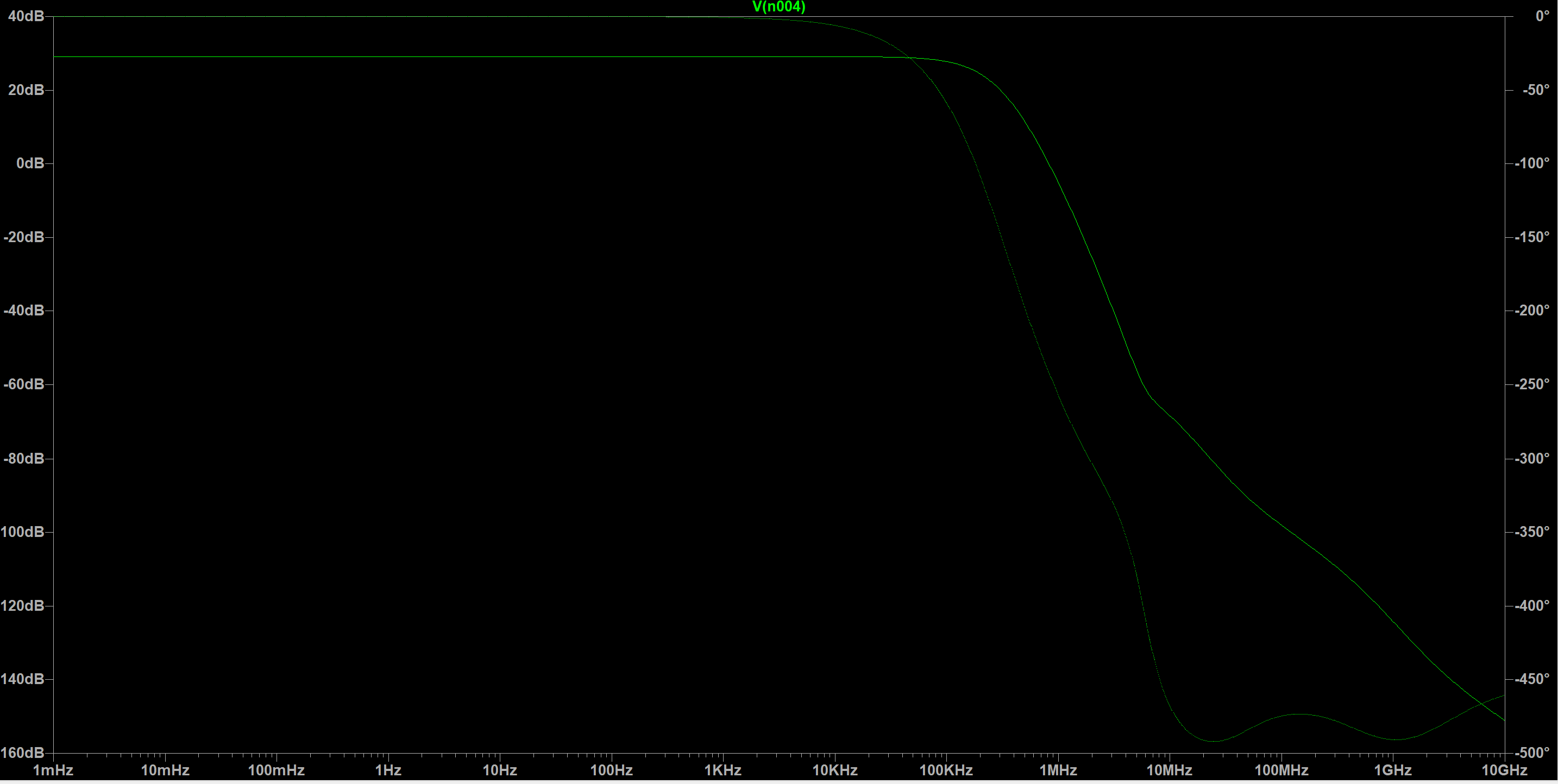

2. Redesigned differential op-amp current sense circuit on Motor Driver board, essential to Field Oriented Control. Designed input differential low-pass filter, and an anti-aliasing low-pass filter to filter out crosstalk. Used LTSpice with small-signal AC analysis bode plot to verify circuit functionality.
3. Specified parts and designed for a 12V to 5V buck converter in my Thunderbots Electrical team application.

Current Sense

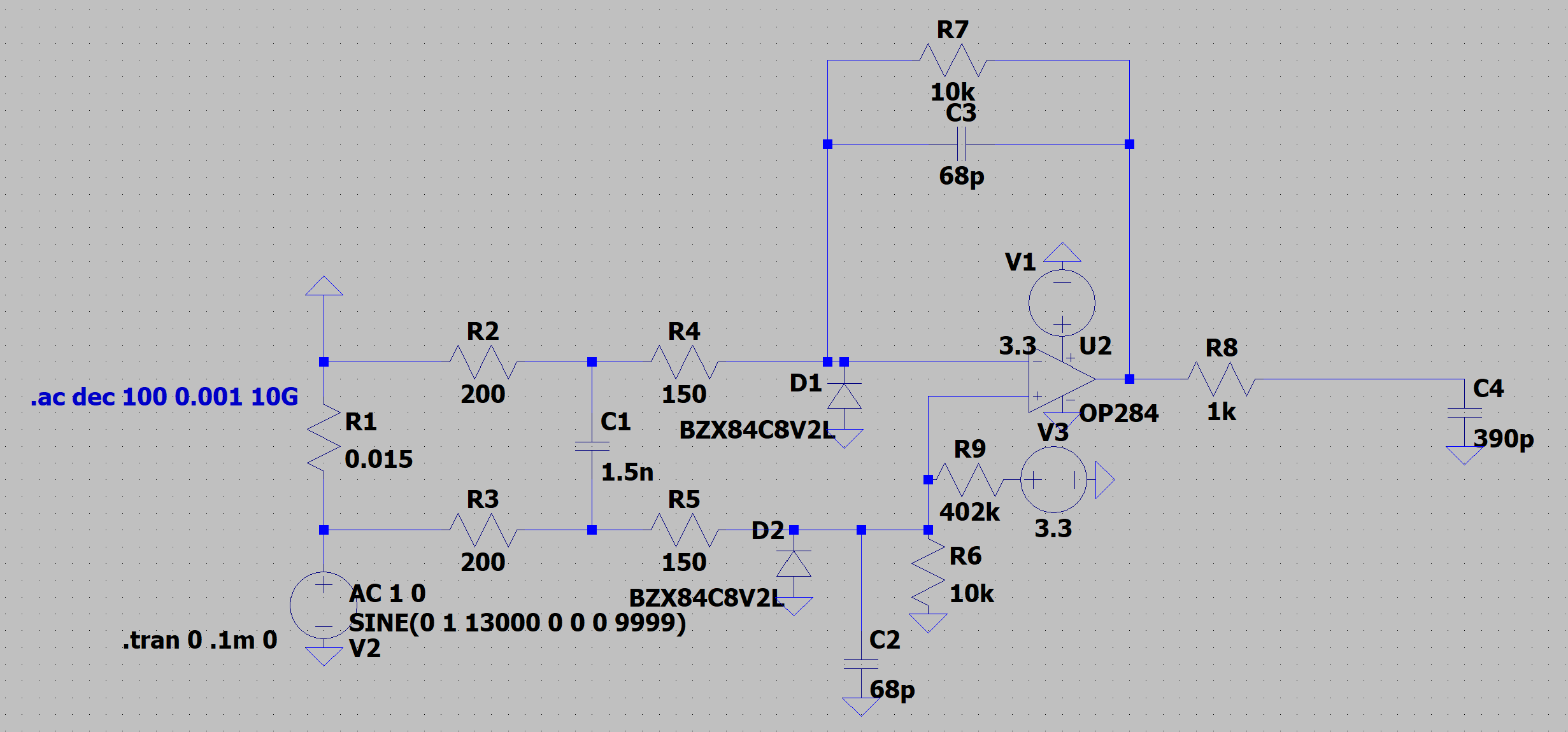

Schematic using specified parts.

Buck Converter Design

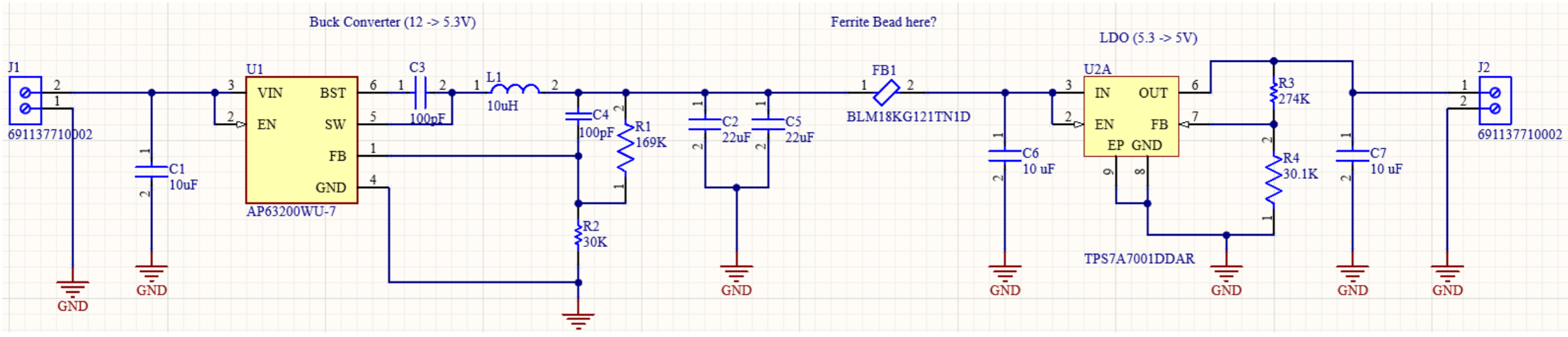

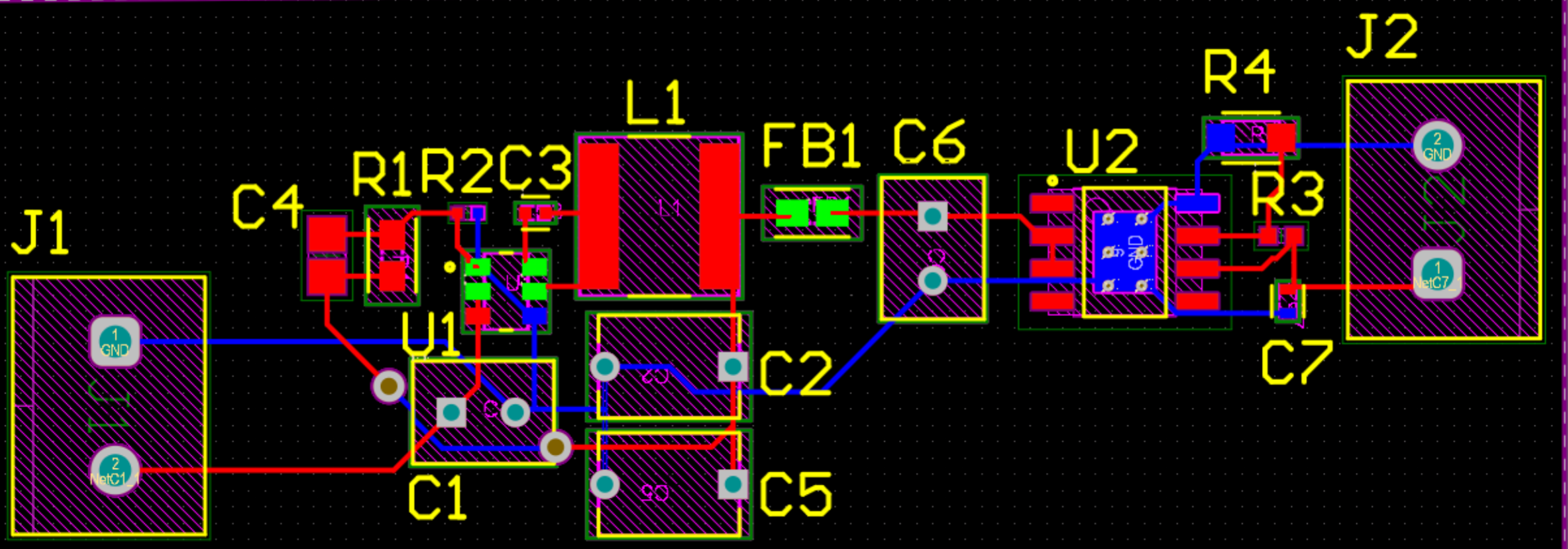

12V to 5V buck converter schematic and PCB in my Thunderbots Electrical team application.
